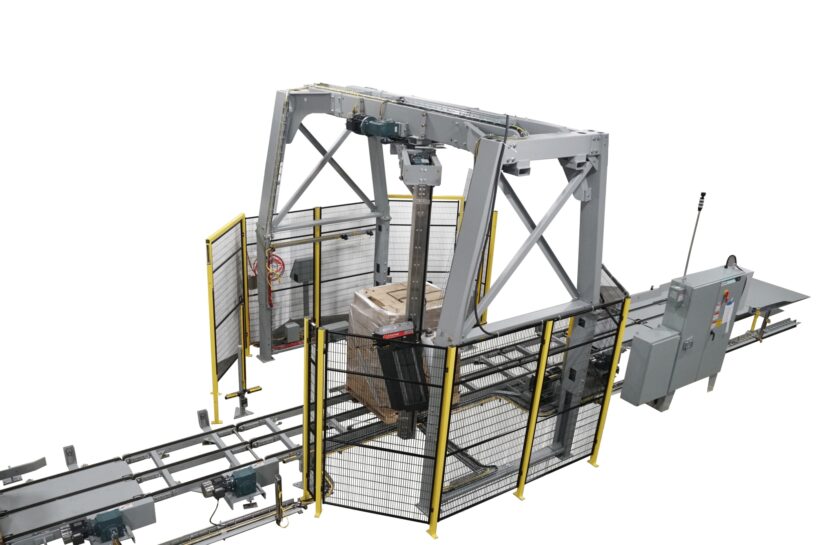

Fully Automatic Rotary Stretch System - Orion MA
The MA fully automatic rotary tower stretch wrapper provides high throughput stretch wrapping for any application. Rotary tower stretch wrappers are ideal for unique applications such as very heavy, very light or unstable loads.
Furthermore, the MA is completely modular and customizable, able to adapt and optimized for any application. From the size and type of conveyors to the length and height of the rotary arm, the MA can be tailored and even retrofitted to grow with the needs of your business.
Built to Last, Built in America
Similar to most Orion products, the MA is designed and built in-house, ensuring a high level of quality and product life. An "open" mechanical design assures that motors, gearboxes, and more are easily accessible for maintenance or service.
-
High OEE with Minimal Downtime and Long Product Life
Four-legged design for extremely stable operation. Machine is built in USA ensures premium quality, minimizing downtime and overall maintenance.
-
User Safety
Wire mesh guarding with interlocked doors and light curtain for operator safety. Standard CAT 3 electrics with separate high and low voltage cabinets for extra redundant safety systems.
-
Maximize Load Stability, Minimize Film Costs
S-Carriage InstaThread film carriage provides 260% pre-stretch to get the most out of your film. With the smart design, reloading film only takes a few seconds, minimizing potential downtime
-
Easy to Maintain and Service
Open mechanical design for easy access to motors and gears during service and maintenance. Commonly available controller parts allow for minimal downtime without needing to wait for replacement parts to arrive.
-
High Throughput and Efficiency
High speed conveyance and rotary arm speed allow for high throughput on 1 machine
-
Wrap Any Load/Product
Heavyweight, lightweight, or unstable load on any machine with our adjustable initial wrap speed and heavy-duty, stable platform
-
User-Centric IntelleVue Controls
Allen Bradley HMI with IntelleVue System provides a smart, easy to use control system requiring minimal training for operators
-
Speed
up to 18 RPM (higher speed options available)
-
Weight
Conveyor capacity
-
Minimum Load Size
30" W x 30" L x 15" H
-
Maximum Load Size
48" W x 48" L x 80" H
-
HMI
Allen Bradley 10"
-
Conveyance
1x Infeed, 1x Wrap Zone, 1x Outfeed
-
Safety Rating
Category 3
-
Forklift Wheelstop
Having a forklift wheelstop protects your machine to prevent the machine accidentally being damaged. It also ensure that the load is centered every time, making load pickup and drop off quick and easy.
-
Lo-Pro Drag Chain Conveyance
Change to our Lo-Pro Drag Chain to maximize throughput and allow loading via walkies or pallet jacks. The logic in the conveyance also allows multiple pallets to be dropped off at the same time and the machine will automatically detect each load and wrap them individually.
-

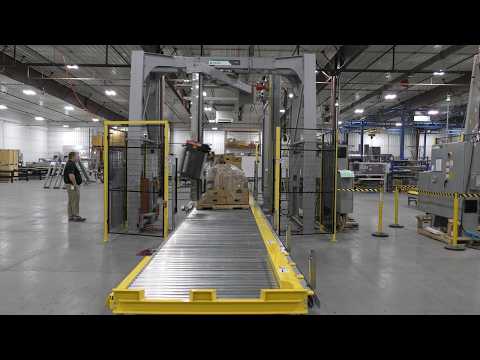

Top Sheet Dispenser
A top sheet protects your load from the dust, debris and moisture. The sheet is applied between the layers of wrap, ensuring that any water or precipitation will trickle down the side of the film, never reaching your product.
What is an automatic rotary arm stretch wrapper?
An automatic rotary arm stretch wrapper applies stretch film around a palletized load using a rotating arm. The load remains stationary while the arm moves around it. Conveyors can move pallets into and out of the wrap zone as part of an automated system.
What types of loads are a good fit for the Orion MA?
The MA is an option for heavy, lightweight, and unstable palletized loads. Because the load remains stationary during wrapping, the system can be useful when rotating a pallet on a turntable is not ideal. Orion can review your product and load characteristics to determine the right fit.
How fast can the Orion MA wrap pallets?
The MA product page lists a rotation speed of up to 18 RPM, with higher speed options available. Pallets per hour depend on the load, wrap pattern, conveyor configuration, and other application requirements. Contact Orion for a throughput estimate based on your operation.
What is the difference between a rotary arm and a turntable stretch wrapper?
A rotary arm stretch wrapper moves the film around a stationary pallet. A turntable stretch wrapper rotates the pallet while film is applied. A rotary arm system may be a better fit when a load is heavy, lightweight, or unstable. The right choice also depends on throughput, floor space, and how pallets move through the facility.
Can the MA be integrated into an existing production line?
The MA is a modular, conveyorized stretch wrapping system that can be configured for different applications. Orion can review your existing equipment and pallet flow to determine the integration approach.
Can the MA apply a top sheet?
Yes. An optional top sheet dispenser can apply a protective sheet during the wrapping process to help protect the top of the load from dust, debris, and moisture.
How much does an automatic rotary arm stretch wrapper cost?
Pricing depends on the machine configuration, conveyance, options, and application requirements. Contact Orion for a quote based on your load and production needs.
How do I know which stretch wrapper is right for my operation?
Start with your pallet dimensions, load weight, product stability, required pallets per hour, and how pallets enter and leave the wrapping area. Orion can review those details and help identify a suitable system.
